MADRIX AURA
IA-HW-001029
The MADRIX AURA is a compact stand-alone lighting controller designed for independent playback and control of dynamic light shows.
KEY TECHNICAL HIGHLIGHTS
• Supports 2, 12, or 32 universes
• Records Art-Net and Streaming ACN data
• Stand-alone playback from SD card
• Built-in web interface for configuration
BEST USED FOR

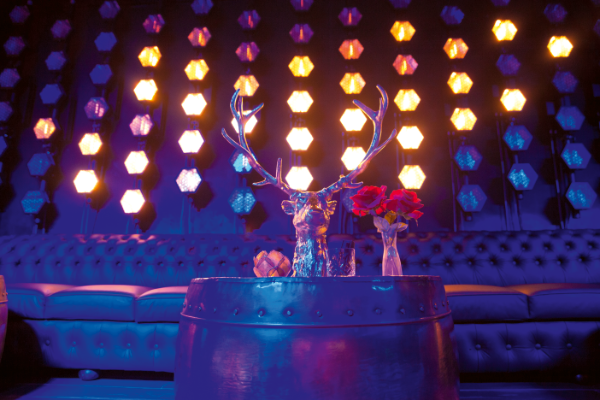

architectural lighting installations, media facades, automated show control.
AURA 2
The advanced lighting-control recorder and stand-alone playback unit
3 versions are available:
MADRIX AURA 2
MADRIX AURA 12
MADRIX AURA 32
Large-scale pixel mapping requires bulky computers needing regular maintenance, doesn't it? You'd be surprised.
MADRIX AURA is small in size, but mighty in features. It is the MADRIX stand-alone unit.
Configurations with 2, 12, or 32 universes bring captivating installations to life. As the central hub, you can count on independent lighting control. The built-in website makes it easy to get started.
First, record any Art-Net or Streaming ACN network stream live. MADRIX AURA then plays back sophisticated light shows, effects, and visuals from SD card. Run a scheduled playlist, or trigger scenes externally with choices like MADRIX ORION.
Simply press record. Simply press play.
The MADRIX AURA is the central stand alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance.
Stand-Alone Playback
Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2, 12, or 32 universes per device.
Live Recording
Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.
Time-Controlled Shows
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.
Master-Slave Synchronization & Scalability
Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.
Web Configuration
Use the built-in web configuration page to access and change specific device settings, such as the important IP address, universes, playlist settings, and much more.
Live Control

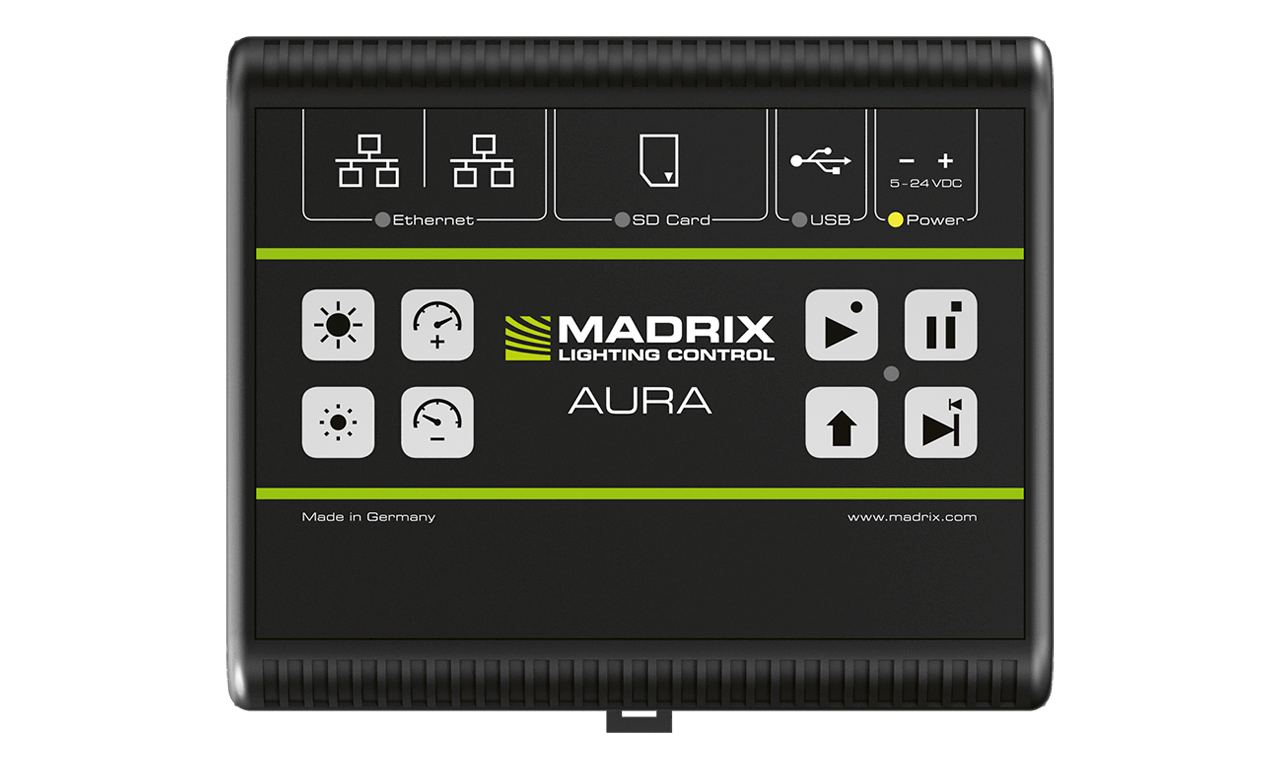

Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.

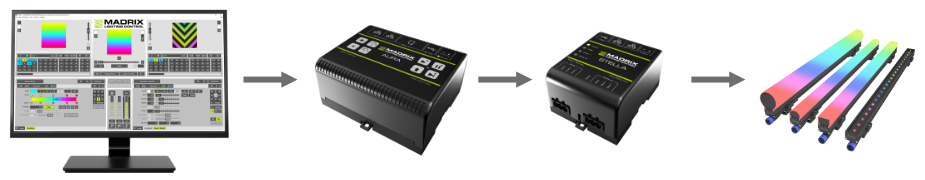

Central Hub
Simply connect compatible MADRIX hardware interfaces or third party nodes to provide the correct output for your lighting fixtures.
LED Lighting Control
MADRIX 5 is the ultimate tool for pixel mapping in 2D or 3D. Use it as the source and content provider for MADRIX AURA, or record any Art-Net or Streaming ACN network stream onto the inserted memory card.
Remote Control
Trigger MADRIX AURA via user-definable HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.

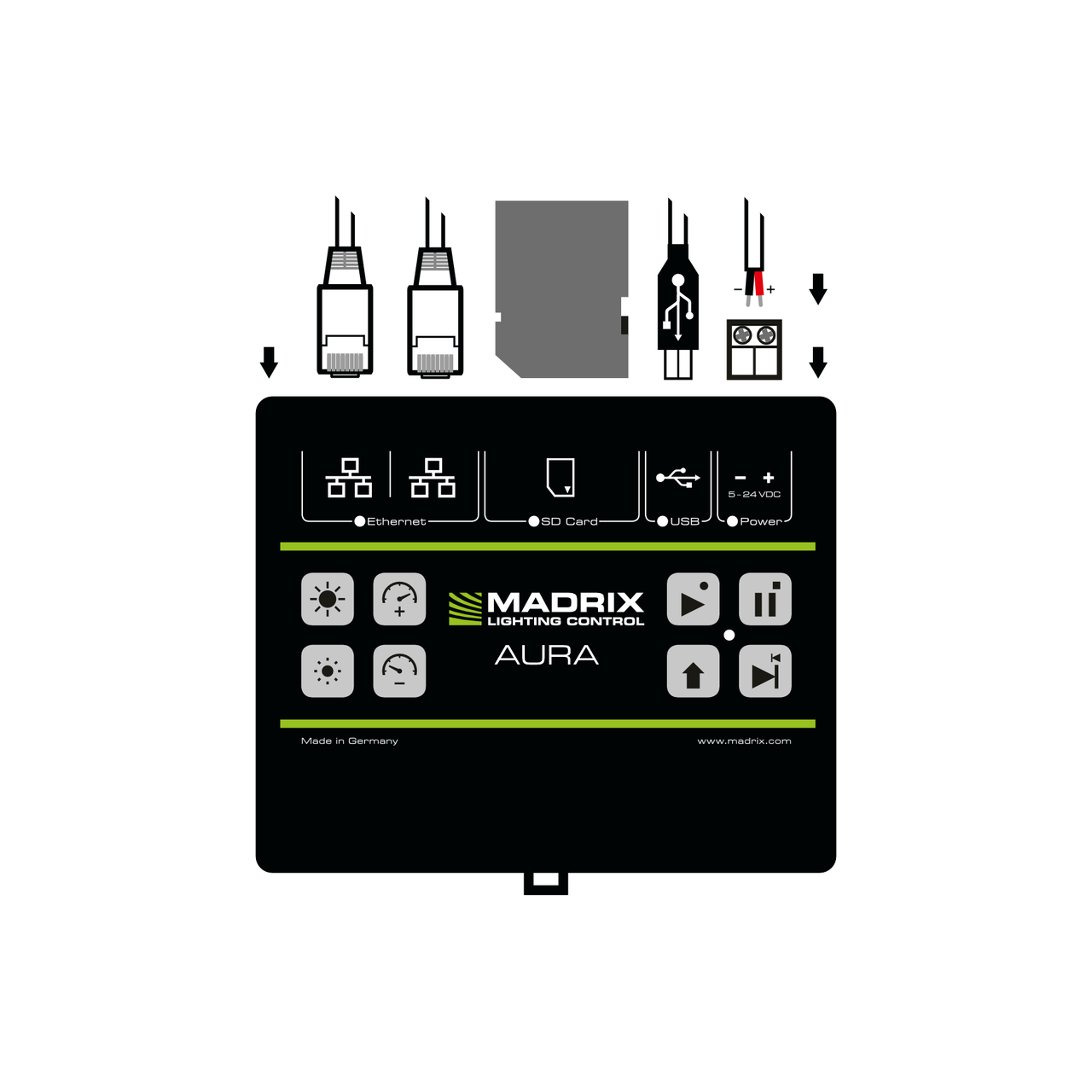

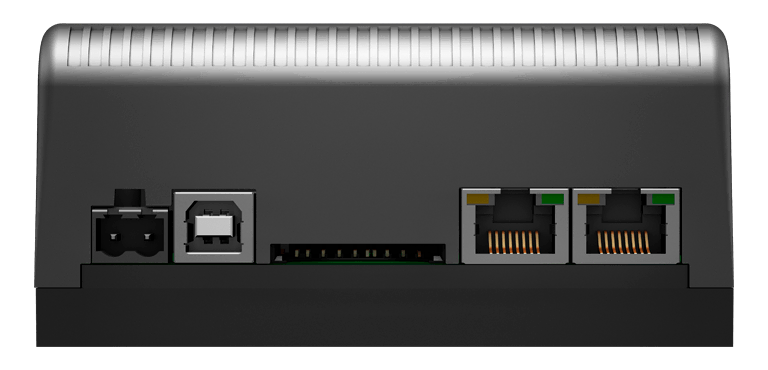

Connectivity
- 2x RJ45 Ethernet Ports
- 1x SD-Card Slot
- 1x USB Port
- 1x Power (via pluggable screw terminal)
Package Contents
- 1x MADRIX AURA
- 1x SDHC Card (inserted into the device)
- 1x Network Cable
- 1x Pluggable Screw Terminal (2-pin)
- 2x Wall-mount Brackets
- 1x Technical Manual / Quick Start Guide
Technical Specifications
| Supply of Power | DC 5 V – 24 V; over A) 2-pin, pluggable screw terminal or B) 5 V USB |
| Power Consumption | 2.5 W (500 mA) during normal operation (500 mA max. fused) |
| BTU/h | 8.53 during normal operation |
| Network Protocols | Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31) |
| RDM Role | Acts on commands and replies to requests with its own status and sensor data via ArtRdm (RDM Responder) |
| Output | 2x / 12x / 32x 512 DMX channels output over Ethernet network |
| Recording Input | 2x / 12x / 32x 512 DMX channels input over Ethernet network |
| Remote-Control Input | 8x 512 DMX channels received over Ethernet network, or Remote HTTP |
| SD-Card Slot | Supports SD, SDHC, and SDXC cards (Tested up to 64 GB) |
| Ethernet | 2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s |
| Ethernet Switch | Lookup Table (ALU) for 4,096 unicast MAC addresses |
| USB | 1x port, USB 2.0, type-B female socket |
| Handling | 8 control buttons, 6 status LEDs (+ 4 network status LEDs) |
| Case | Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting |

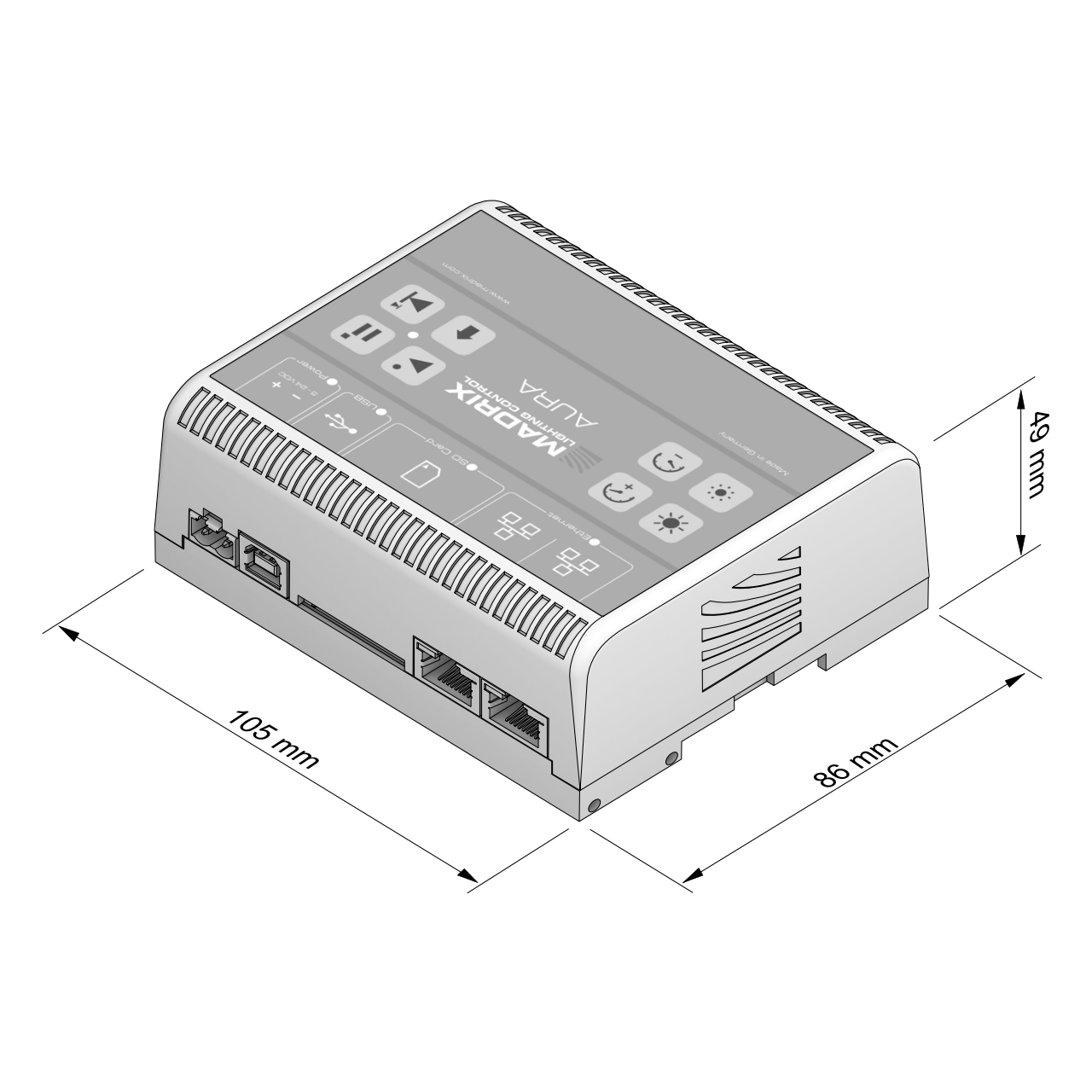

| Dimensions | 86 mm × 105 mm × 49 mm (3.39˝ × 4.13˝ × 1.93˝) (Length × Width × Height) |
| Weight | 148 g (0.33 lb) | 154 g (0.34 lb) incl. screw terminal, SD card, and wall mounts |
| Temperature Range | -10 °C to 70 °C (14 °F to 158 °F) (Operating) | -20 °C to 85 °C (-4 °F to 185 °F) (Storage) |
| Relative Humidity | 5 % to 80 %, non-condensing (Operating / Storage) |
| IP Rating | IP20 |
| Certificates | CE, EAC, FCC, RoHS |
| Warranty | 5 years of limited manufacturer's warranty |
