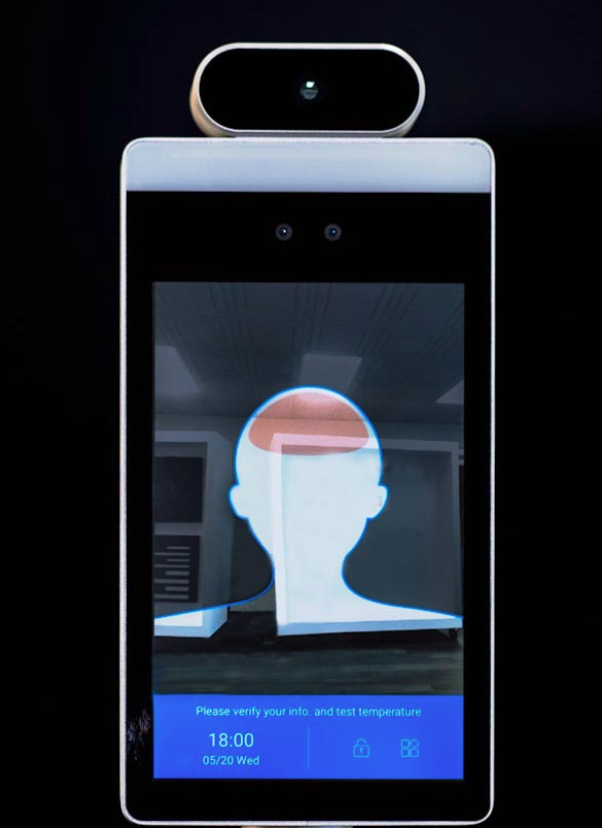

ME-MATE. JR - WALL MOUNT TEMPERATURE UNIT
ME-MATE JR is a new Wifi Enabled Automated Temperature Screening AI Unit with Face Recognition. This sleek portable unit offers an LED Light to get attention and is an intelligent 8 inch Android LCD system for rapid temperature detection in public places. ME-MATE can be used as is or networked with a personal website. This product adopts high-performance AI algorithm chip solution, equipped with industrial-grade binocular camera and infrared thermal imaging module on Android 9.0 system. The device uses face biometric recognition technology, supports 30,000-level face database stored on the screen, binocular biometric recognition, and millisecond judgment. The product supports functions such as body temperature detection, disinfect hands, attendance, and Access control punch. It is a safe, efficient, and accurate temperature detection product. It can also be used for access control of face recognition (optional). CE & FCC CERTIFIED.
SETUP A ZOOM CALL TODAY TO SEE ALL OF THE FEATURES!
FEATURES:
-NETWORK and ONLINE OPTIONS: Either through the cloud or your own private server!
-EFACE Software (Download to your computer or your private server) using Chrome
-Receive your own personal login and website to manage your ME-MATE JR or Table Top units. You can use both Table Top & ME-MATE JR with one website.
-Touch Screen
-Advertising Screen when Screen Is In Sleep Mode
-Card Reader to Open and Close Doors with Online Management and Time Clock
- Device Statistics Showing Online and Offline Units
- Traffic Reports and Records (the statistics of the number of normal traffic and fever today)
- Attendance Reports and Management
- Yesterday's attendance Statistics and Real-Time Statistics of Employees/Visitors
- Card Managment System
- Link Multiple (endless) units to website and server
- Alerts by email when Temperature Failure Detected
- Add Groups
- Add New Employees
- Add and Manage Users
- Upload Photos for Registered Users and add employee or student ID's.
- Download or upload information / Batch Import or Bath Photo Import
- Import Template to the server
- Change your password feature
- Add multiple devices
- Set face perameters (mask detection mode, registration mode, non-registration mode, Set camera direction, set distance, algorithm angle, preview angle, face frame, image)
- Temperature Setting and Timer (can set celcius or farenheit and specify alarm temperature)
- Infared Setting (Can turn on the infrared camera automatically, set the infared time on/off)
- Set attendance rules
- Employee Time Clock Record
- Set Event Name
- Card Management (Swipe Card to Open Door). Can add, delete, modify and check the card, and view related information of the owner's personnel bound to the card.
- Add Company Logo under system settings
- System Log
| 8 inch, Resolution 800x1280P 8. Compatible with Access Control Punch |
CAMERA
| RESOLUTION |
720p (1080p optional) |
| TYPE |
DYNAMIC CAMERA |
| APERTURE |
f2.4 |
| FOCUS DISTANCE |
1’ 8” - 4’11” |
| WHITE BALANCE |
AUTO MODE |
| FILL-IN LIGHT |
LED & IR |
LCD
| SIZE |
8" IPS LCD |
| RESOLUTION |
800x1280 |
| TOUCH SCREEN |
optional |
MAIN BOARD
| CPU |
amlogic s905d3 quad-core a55 |
| GPU |
arm g31 mp2 |
| NPU |
1.2tops |
| DDR |
1 gb (2gb optional) |
| MEMORY |
emmc 8g |
INTERFACE
| INTERNET MODULE |
ethernet, wireless external, 2.4g hz (optional 5g) |
| AUDIO |
max 3w |
| USB |
1 usb |
| SERIAL COMMUNICATIONS |
1 uart/rs232 |
| RELAY OUTPUT |
1 relay output |
| WEIGAND |
1 26/34 input /output |
| LAN |
1*RJ45 |
FUNCTION
| FACE DETECTION |
binocular biometric recognition |
| FACE DATABASE |
20000 |
| 1: n FACE RECOGNITION |
support |
| 1:1 FACE CONTRAST |
support |
| STRANGER DETECTION |
support |
| RECOGNITION DISTANCE SETTING |
support |
| ATTENDANCE MODE |
support |
| TEMPERATURE DETECTION |
support |
| NIGHT INDUCTION |
support |
| FACE DETECTION WITH MASK |
support |
| UI CONFIGURATION |
support |
| REMOTE UPGRADE |
support |
| LANGUAGE |
based on android system language |
INFARED RAY THERMAL IMAGERY MODULE
| TEMPERATURE DETECTION DISTANCE |
0-2'7.5" |
| TEMPERATURE DETECTION ACCURACY |
≤±0.2 °C |
| TEMPERATURE RANGE |
89.6°F - 109°F |
| AMBIENT TEMPERATURE |
32°f - 122°f |
| AMBIENT HUMIDITY |
10-95%rh |
| ALARM FUNCTION |
support |
| POWER |
dc 12v (±10%) |
| OPERATING TEMPERATURE |
32°f - 122°f |
| STORAGE TEMPERATURE |
-4°f |
| POWER CONSUMPTION |
13.5w (max) |
| INSTALLATION |
gate bracket on unit/wall mount |
| SIZE |
8" SCREEN |
| WEIGHT |
17 |
FEATURES:
-NETWORK and ONLINE OPTIONS: Either through the cloud or your own private server!
-EFACE Software (Download to your computer or your private server) using Chrome
-Receive your own personal login and website to manage your ME-MATE JR or Table Top units. You can use both Table Top & ME-MATE JR with one website.
-Touch Screen
-Advertising Screen when Screen Is In Sleep Mode
-Card Reader to Open and Close Doors with Online Management and Time Clock
- Device Statistics Showing Online and Offline Units
- Traffic Reports and Records (the statistics of the number of normal traffic and fever today)
- Attendance Reports and Management
- Yesterday's attendance Statistics and Real-Time Statistics of Employees/Visitors
- Card Managment System
- Link Multiple (endless) units to website and server
- Alerts by email when Temperature Failure Detected
- Add Groups
- Add New Employees
- Add and Manage Users
- Upload Photos for Registered Users and add employee or student ID's.
- Download or upload information / Batch Import or Bath Photo Import
- Import Template to the server
- Change your password feature
- Add multiple devices
- Set face perameters (mask detection mode, registration mode, non-registration mode, Set camera direction, set distance, algorithm angle, preview angle, face frame, image)
- Temperature Setting and Timer (can set celcius or farenheit and specify alarm temperature)
- Infared Setting (Can turn on the infrared camera automatically, set the infared time on/off)
- Set attendance rules
- Employee Time Clock Record
- Set Event Name
- Card Management (Swipe Card to Open Door). Can add, delete, modify and check the card, and view related information of the owner's personnel bound to the card.
- Add Company Logo under system settings
- System Log
